SSM2250 multi-function low-power amplifier integrated circuit

Published:2011/6/10 0:54:00 Author:qqtang | Keyword: multi-function, low-power amplifier | From:SeekIC

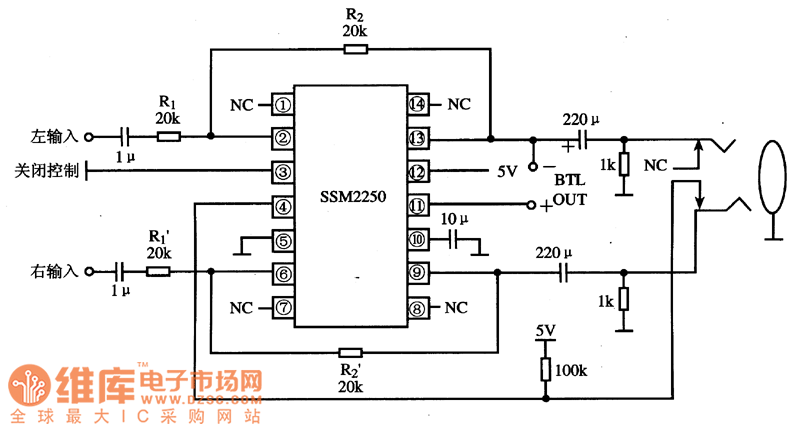

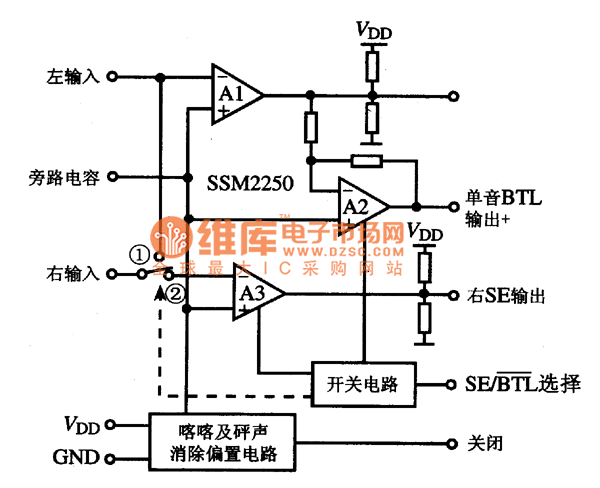

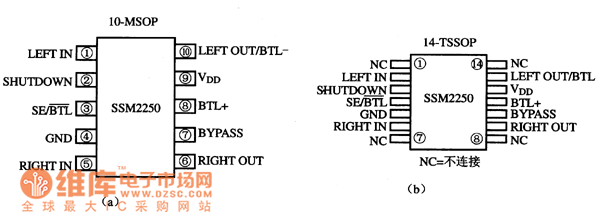

1.function featuresSSM2250 includes 3 full amplitude(output amplitude value is close to that of power supply) computing amplifiers, kluck and Ping sound removing bias circuit and switch control circuit, etc. Its internal circuit is shown in the figure. The internal circuit of SSM22502.pin functionsSSM2250 has two kinds of packages: 10-pin MSOP and TSSOP, whose pin sequence is shown in the figure, and the two packages with their relationship and the pin functions are listed in the table.
