SOLAR_CELL_AMPLIFIER

Published:2009/7/10 4:57:00 Author:May | From:SeekIC

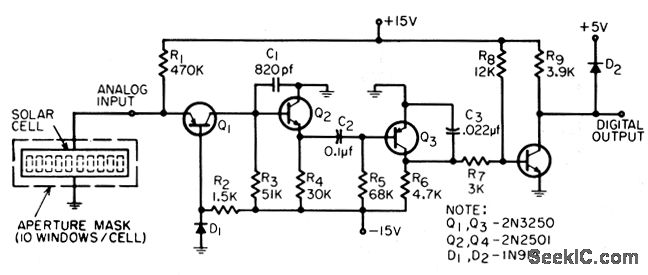

Used with mulliaperture solar cells to genorate 10 strobe pulses.Eight circuits with cells one needed to generate 80 strobe pulses for reading conventional punched card.-C. R. Hearn,Multi-Aperture Solar Cell Amplifiter,EEE,14:4,p 43－44.
