SMR62000A--the integrated circuit of switch power supply thick film

Published:2011/6/5 9:40:00 Author:qqtang | Keyword: integrated circuit, switch power supply | From:SeekIC

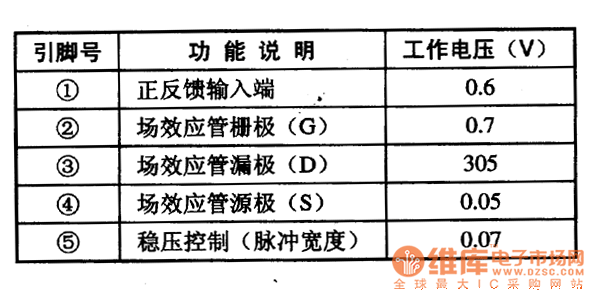

SMR62000A is an integrated circuit of switch power supply thick film produced by SAMSUNG, which is widely used in large screen color TV sets, computer screen and disc player switch power supplies, such as Haier large screen color TV, etc.1.pin functions and dataSMR62000A is in single line pin package, whose pin functions and data are listed in the table.Pin functions and data of SMR62000A 2.typical application circuitThe typical application circuit of SMR62000A is listed in the figure. The typical application of SMR62000A
