SMC6215--the communication single door microcomputer integrated circuit

Published:2011/6/5 9:58:00 Author:qqtang | Keyword: single door, microcomputer | From:SeekIC

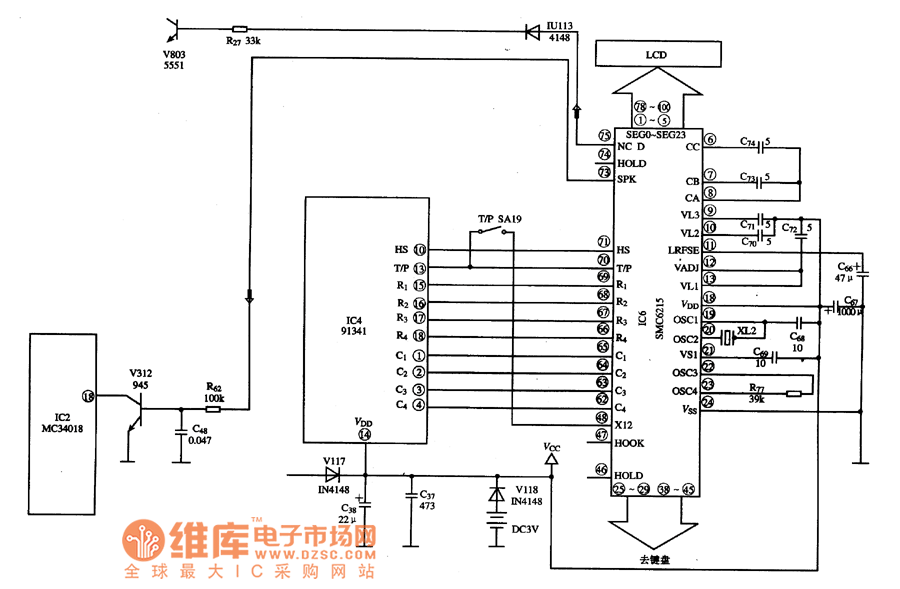

SMC6215 is a communication single door microcomputer integrated circuit, which is widely used in Panasonic intelligent multi-function phones.1.function featuresSMC6215 contains clock oscillating circuit, key pulse generating circuit, key order encoding circuit, off-hand control circuit, music retaining circuit, dual audio/pulse dialing shifting control circuit, storage circuit, starting control circuit, steady power supply circuit, dialing control circuit, LED display signal decoding and drive circuit, and other additional function circuits.
