SMALL_SIGNAL_AMPLlFlER

Published:2009/6/24 23:31:00 Author:May | From:SeekIC

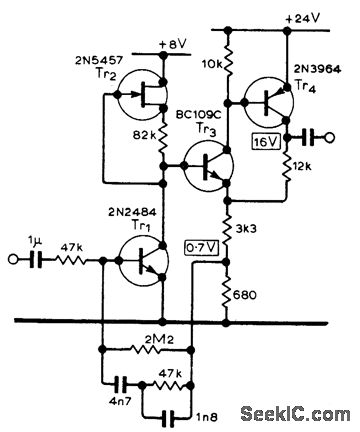

Combines fea-tures of virtual-earth and high-inpufimpedan ce amplifiers economically for such applications as a record amplifier, and provides several times the gain of a virtual-earth amplifier alone.-D.Rawson-Harris, Small Signal Amplifier, Wire-less World, Feb. 1977, p 45.
