SMALL_SIGNAL_60_MC

Published:2009/7/10 1:56:00 Author:May | From:SeekIC

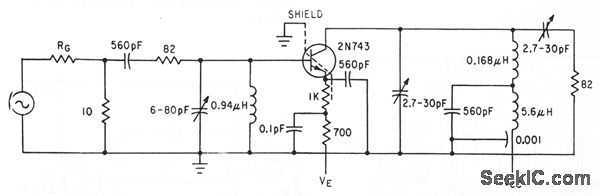

Epitaxial 2N743 is operated Gammon-emitter at signal frequency and Gammon-base for biasing. Unneufralized gain per stage is 17 db.-D. Hall, Using Epitaxial Transistors in Switching and R.F Circuits, Electronics, 34:13, p 52-53.
