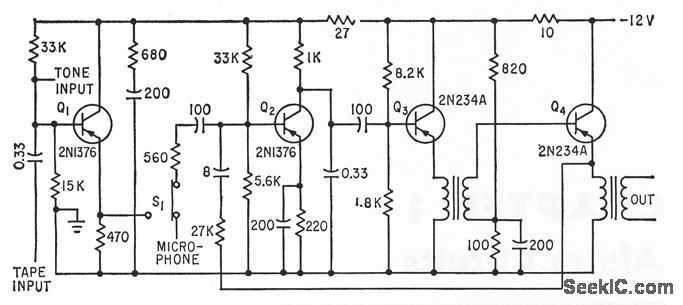

SIREN_PREAMPLI_FIER

Published:2009/7/9 23:11:00 Author:May | From:SeekIC

Supplies signals to remote power ampliters and loudspeakers of fire and civil defense systems. Input can be from electronic siren generator, magnetic tape, or microphone.-W. F. Ferguson, High-Powered Audio Alarm Systems, Electronics, 33:16, p 70-72.
