SIREN_POWER_AMPLIFIER

Published:2009/7/9 23:31:00 Author:May | From:SeekIC

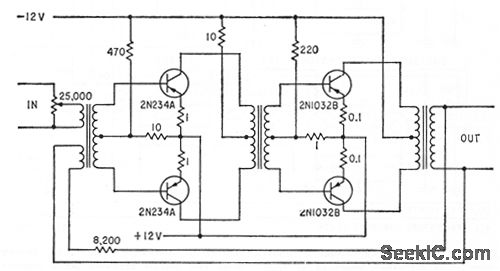

Four-transistor class AB audio amplifier delivers 200 w to four loudspeakers. Standby power drain is 12 w.Input is obtained from warble generator.-W.F. Ferguson, High-Powered Audio Alarm Systems, Electronics, 33:16, p 70-72.
