SINGLE_TUNED_FINAL_I_F

Published:2009/7/16 2:33:00 Author:Jessie | From:SeekIC

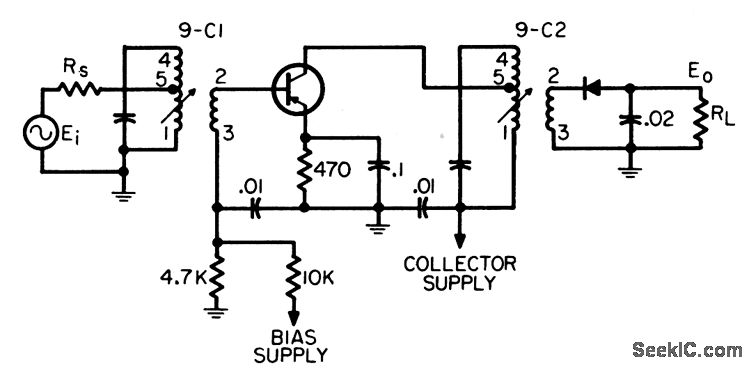

Circuit is example of optimum design based on use of transistor signal-handling curves. Transformers are single-tuned.-W. Rheinfelder, Using transistor Signal Handling Curves in Receiver Design, EEE, 14:6, p 62-66.
