SINGLE_TRANSISTOR_I_F_AMPUFIER

Published:2009/7/16 2:59:00 Author:Jessie | From:SeekIC

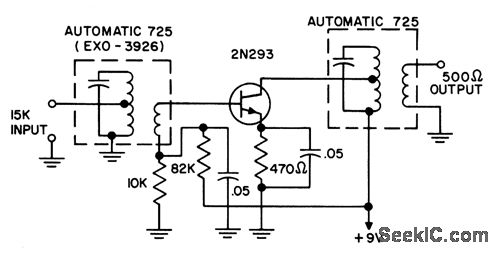

Designed for broadcast-band transistor radio. Neutralization is unnecessary with 2N293 rate-grown npn transistor used.-Transistor Manual, Seventh Edition, General Electric co.,1964, p 285．
