SINE_WAVE_OUTPUT_BUFFER_AMPLIFIER

Published:2009/6/24 22:42:00 Author:May | From:SeekIC

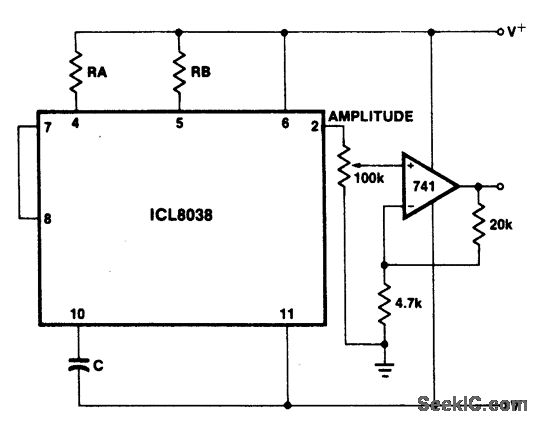

The sine wave output has a relatively high output impedance (1K typ). The circuit provides buffering, gain, and amplitude adjust ment. A simple op amp follower could also be used.
