SIMPLIFIED_UJT_SCR_TRIGGER

Published:2009/7/23 21:30:00 Author:Jessie | From:SeekIC

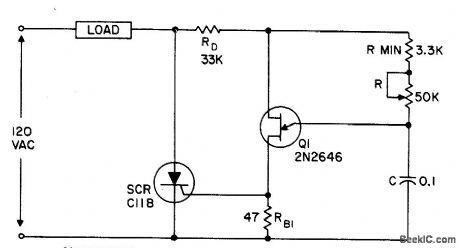

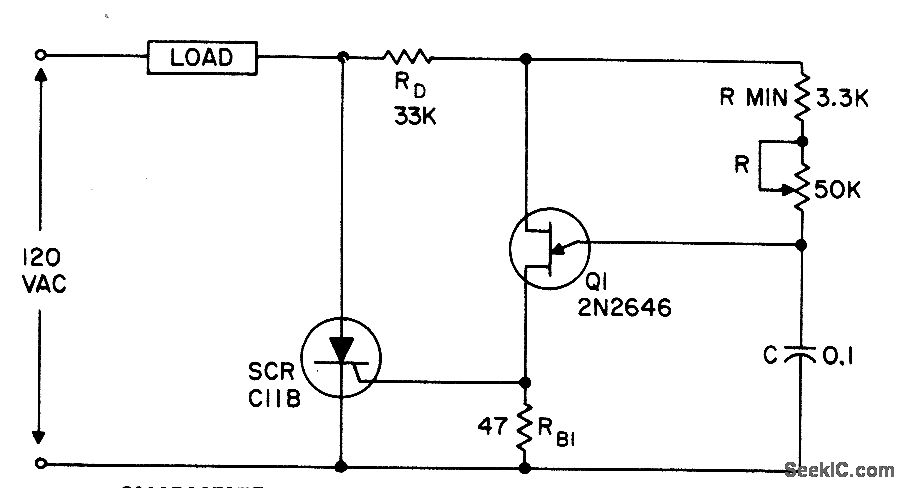

Emitter timing circuit and base-2 of ujt are supplied directly from ac line, with dropping resistor RD keeping peak voltage on ujt within specifications.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 329.
