SIMPLIFIED_FULL_WAVE_UJT_SCR_TRIGGER

Published:2009/7/23 21:14:00 Author:Jessie | From:SeekIC

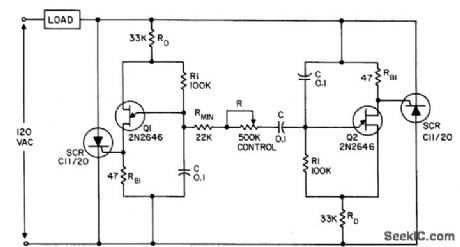

Consists of two basic half-wave circuits plated back to back, with emitters of ujt's cross-coupled with network that exerts full-cycle phase control over both scr's.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 330.
