SIMPLE_TAPE_PLAYBACT_AMPLIFIER

Published:2009/7/9 2:56:00 Author:May | From:SeekIC

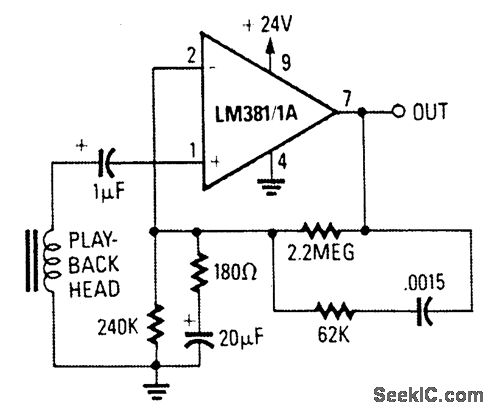

This circuit uses an LM381/1A as a tape pre-amp. The feedback network includes NAB Equali-zation.
