SIMPLE_SCHMITT_TRIGGER

Published:2009/6/23 2:34:00 Author:May | From:SeekIC

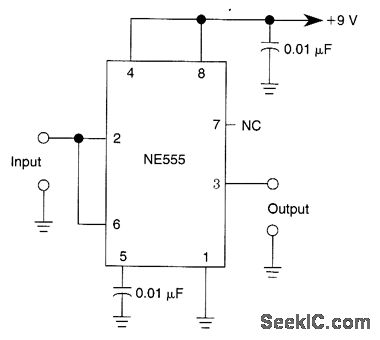

A 555 IC is shown configured to function as a Schmitt trigger. Inputs above and below the threshold level will turn the circuit on and off producing a square wave output.
