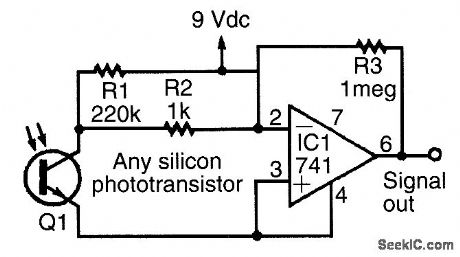

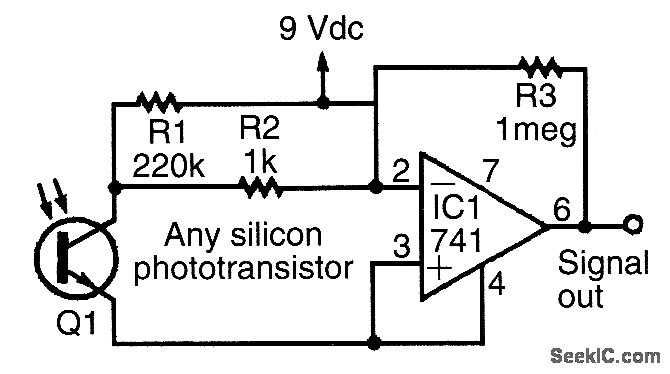

SIMPLE_AMPLIFIER_FOR_PHOTOTRANSISTORS

Published:2009/6/24 3:56:00 Author:May | From:SeekIC

This simple amplifier will work well with just about any phototransistor. The 741, although designed to operate with a split supply, will work with a single-sided supply as well.
