SIMPLE_40_dB_GAIN_AMPLIFIER

Published:2009/7/9 2:58:00 Author:May | From:SeekIC

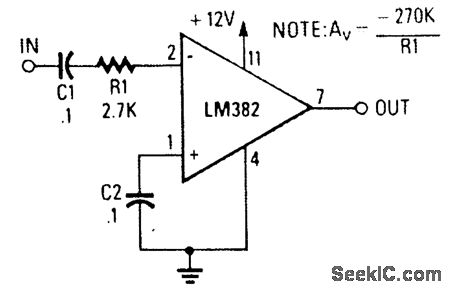

An LM382 low-noise preamp is used here to obtain a 40-dB gain amplifier, using only the IC and three peripheral components.
