SIDEBAND_RF_AMPLIFIER

Published:2009/7/9 1:02:00 Author:May | From:SeekIC

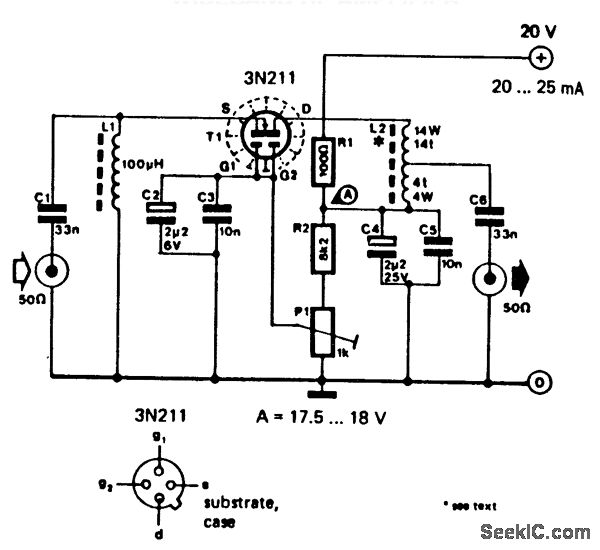

This RF amplifier has wide bandwidth and dynamic range. It has a gain of 10 dB, noise figure less than 5 dB, and the third-order 1 MD is -40 dB at +22 dBm/tone output. The bandwidth is 4 to 55 MHz.
