SENSE_AMPLIFIER

Published:2009/7/15 5:36:00 Author:Jessie | From:SeekIC

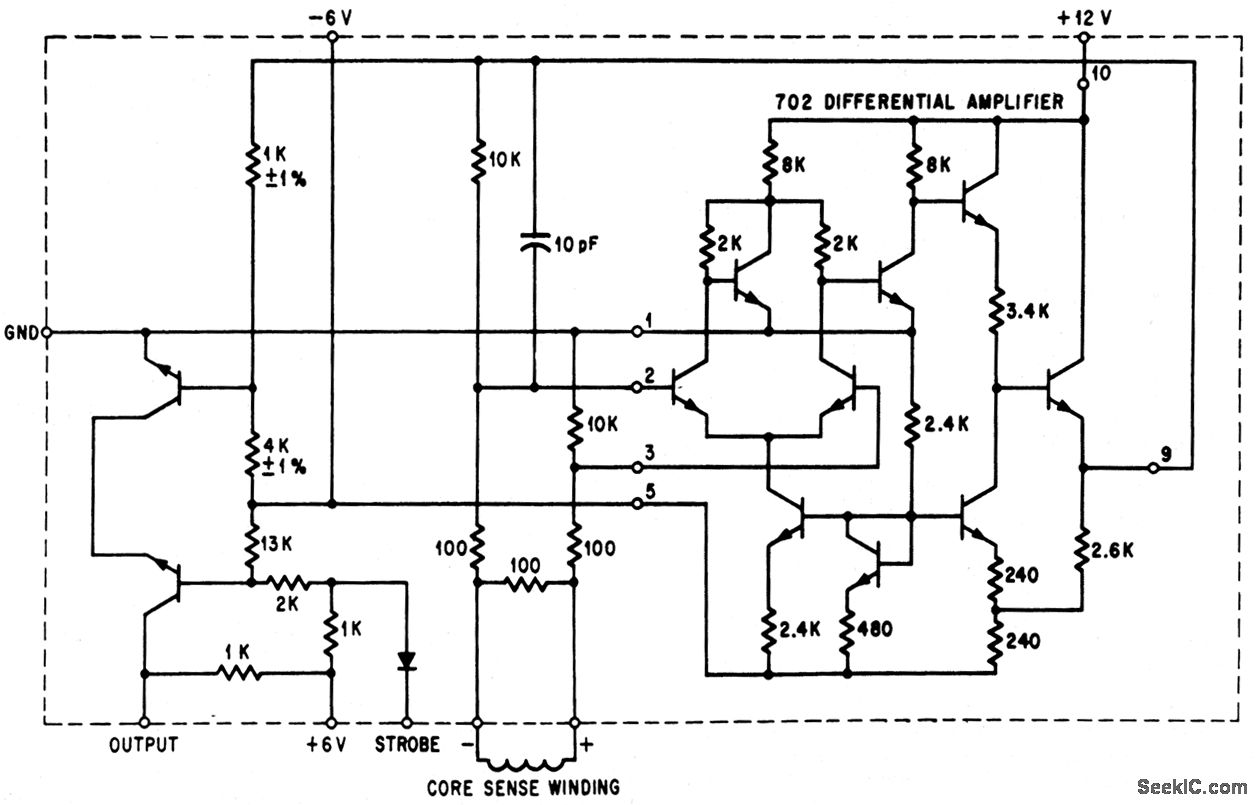

Uses two flatpacks (shaded areas)attached to thick-film passive network.-F. A. Plemenos. The packaging Revolution, Part VI: Converting to Microelectronics. Electronics.39:4,p103-109.
