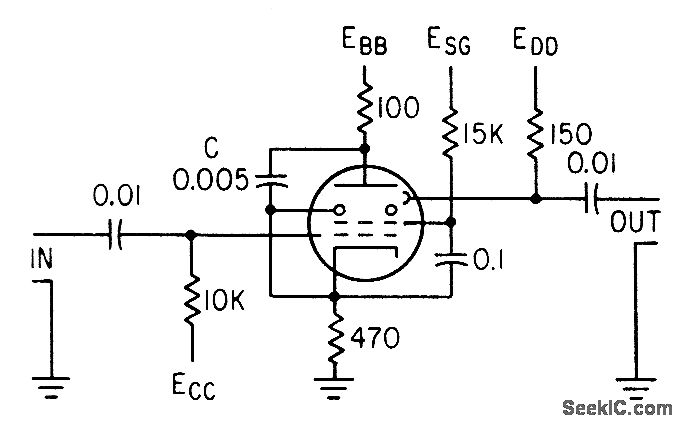

SECONDARY_EMISSION_PENTODE_TRIGGER

Published:2009/7/21 9:04:00 Author:Jessie | From:SeekIC

Produces positive output pulse across dynode loud each time it is triggered by positive grid pulse. Used in high-speed, short-duration pulse work.-E. J. Martin, Jr., How to Use the Secondary-Emission Pentode, Electronics, 33:41, p 60-63.
