SECONDARY_EMISSION_PENTODE_CATHODE_FOLLOWER

Published:2009/7/10 2:21:00 Author:May | From:SeekIC

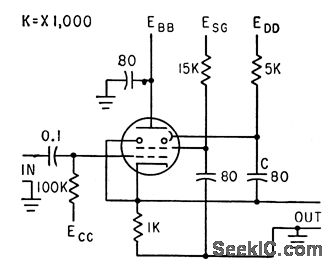

Circuit is enhanced by connecting dynode bock to cathode. Uses degenerative feedback, to achieve high-performance impedance transformation. Can be used to match high-impedance source to low-impedonce load.-E. J. Martin, Jr., How to Use the Secondary-Emission Pentode, Electronics, 33:41, p 60-63.
