SCOPE_PREAMP

Published:2009/7/10 21:45:00 Author:May | From:SeekIC

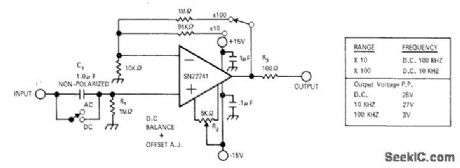

Extends vertical sensitivity range of scope or VOM at minimum cost. Voltage at output is in phase with input. Switch across C gives choice of AC or DC operation.Table gives frequency and output voltage limits. Input impedance is about 500 kilohms.-G.Coers, High-Gain AC/DC Oscilloscope Amplifier, EDN|EEE Magazine, Feb.1,1972, p 56.
