SAA4991--the scanning converter integrated circuit

Published:2011/6/7 22:06:00 Author:qqtang | Keyword: scanning converter, integrated circuit | From:SeekIC

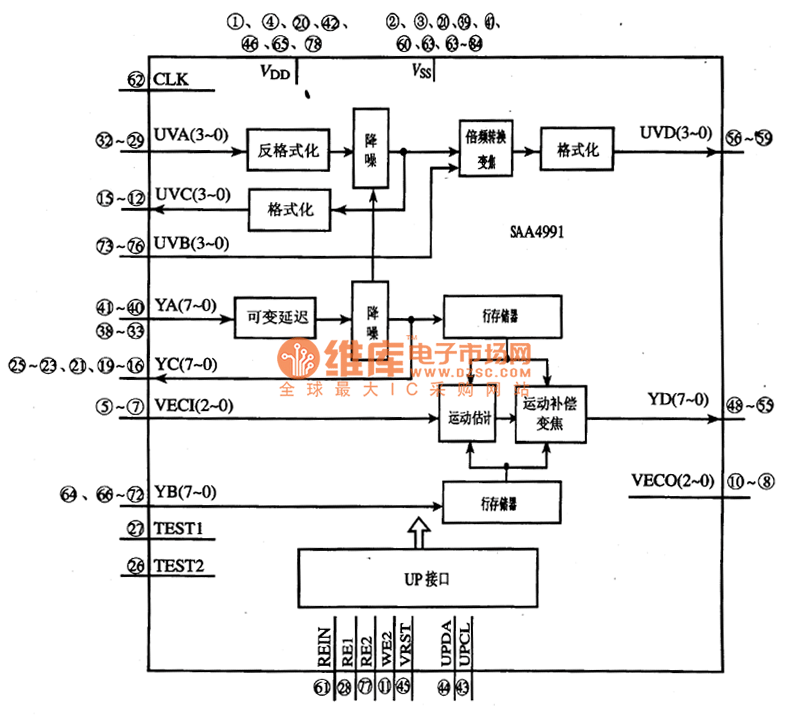

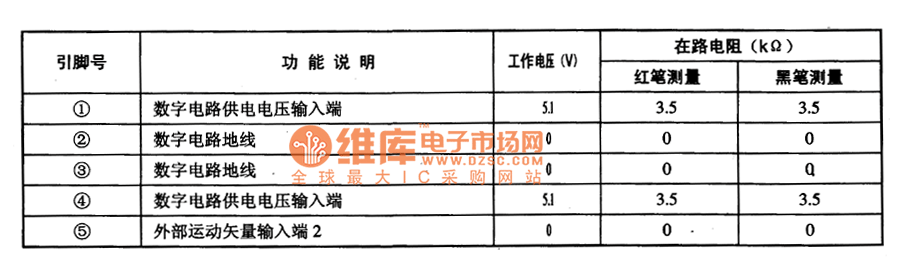

1.functions featuresSAA4991 includes the Y and UV signal process circuit, UV and Y storage circuit, vector process circuit, field Y and UV signal process circuit, test circuit, storage read-allowed control circuit, SNERT data clock signal process circuit and other additional circuit, whose internal circuit is shown in the figure. The internal circuit of SAA49912.pin functions and dataSAA4991 is in 84-pin square package, whose pin functions and data are listed in the table.Pin functions and data of SAA4991
