SAA4955TJ--The frame storage integrated circuit

Published:2011/6/8 2:28:00 Author:qqtang | Keyword: frame storage, integrated circuit | From:SeekIC

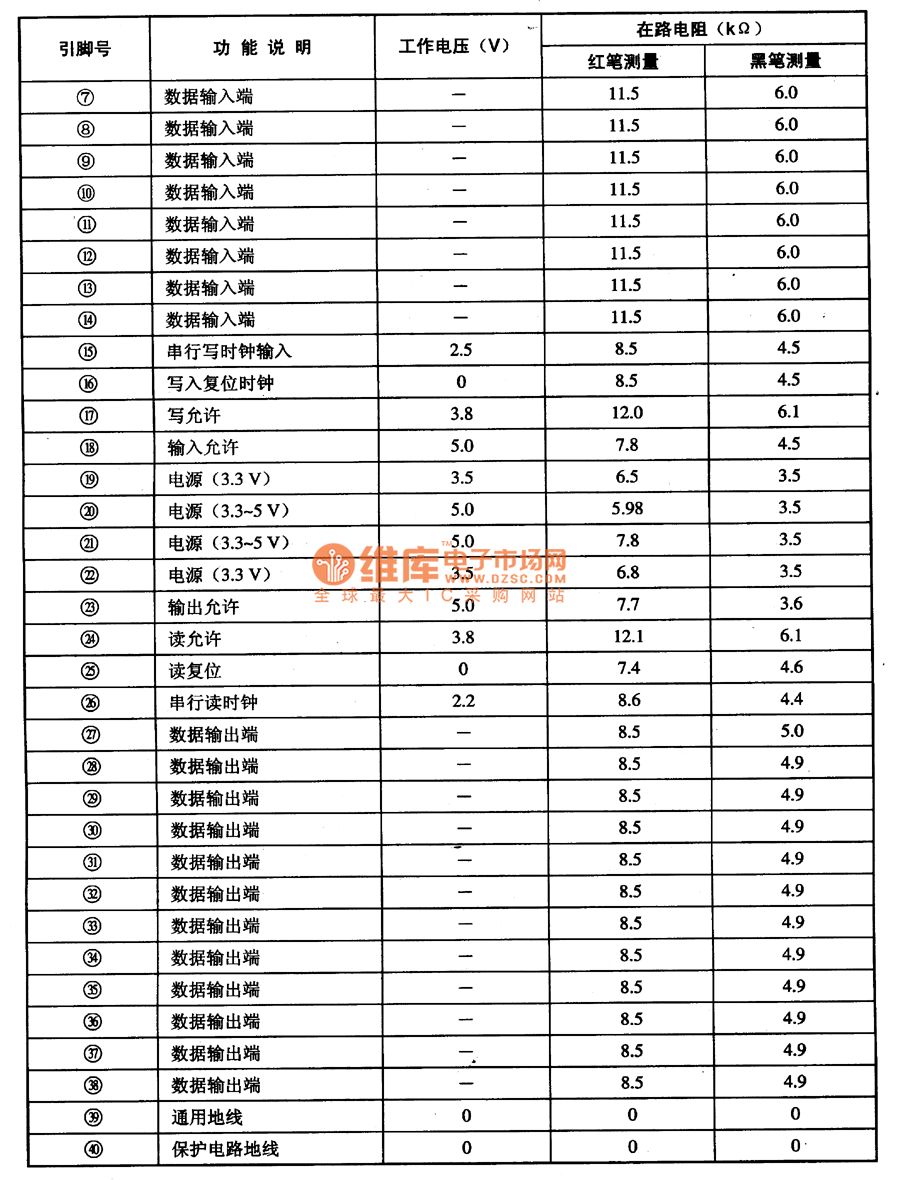

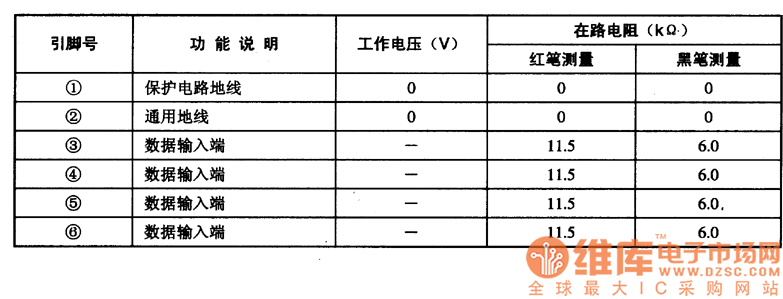

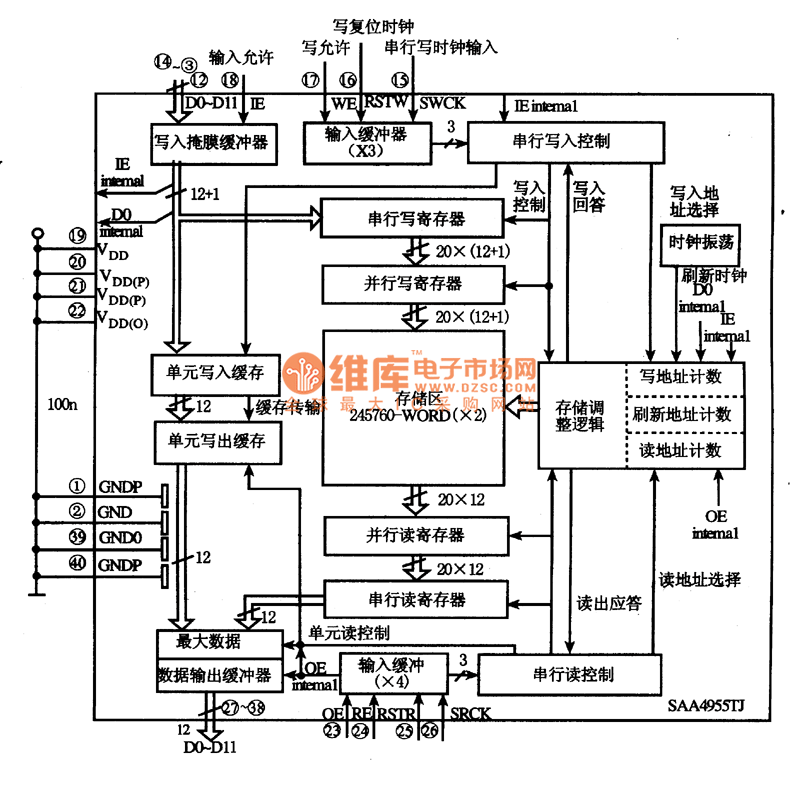

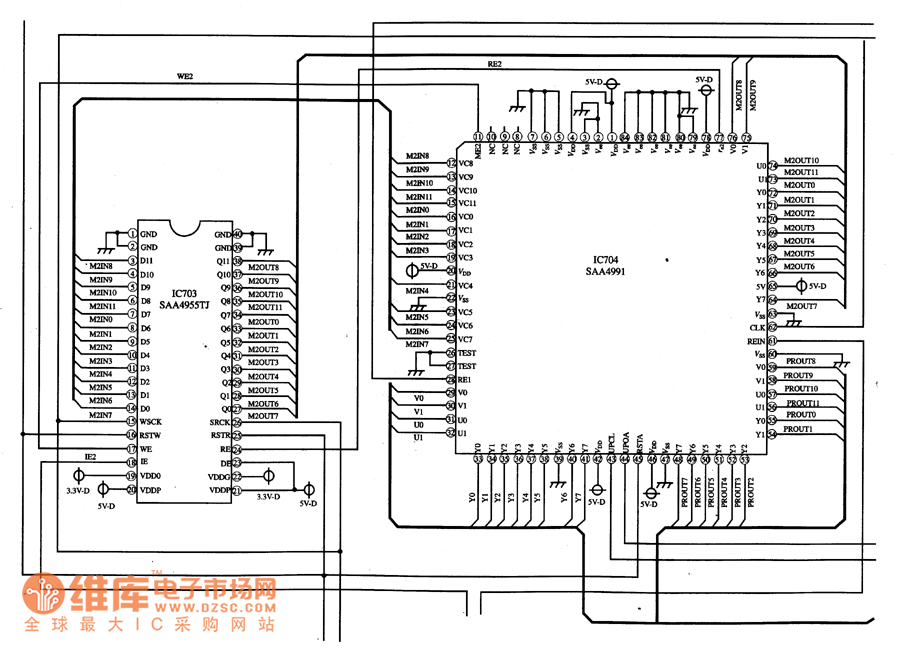

SAA4955TJ is the frame storage integrated circuit produced by Philips, which is widely used in local and imported scanning large screens TV and computer screens.1.function featuresSAA4955TJ contains the data and clock circuit, data storage and other additional circuit, whose internal circuit is shown in the figure. The internal circuit of SAA4955TJ2.pin functions and dataSAA4955TJ is in 40-pin dual line package, whose pin functions and data are listed in the table.Pin functions and data of SAA4955TJ
