SAA3010--the integrated circuit of single chip operation controllers

Published:2011/6/8 2:39:00 Author:qqtang | Keyword: integrated circuit, single chip, operation controllers | From:SeekIC

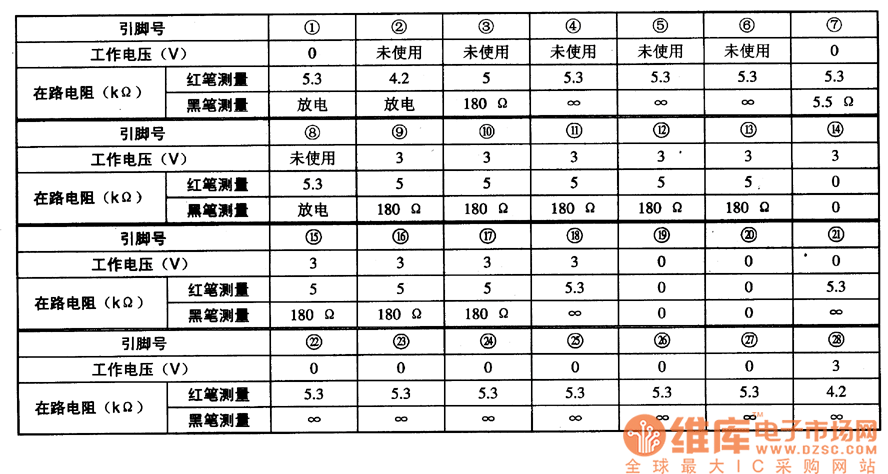

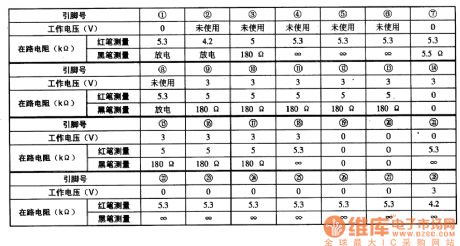

SAA3010 is an integrated circuit of single chip operation controllers produced by Philips, which is widely used in all kinds of remote control systems, such as disc players, TV sets, stereo equipment, etc.1. Function featuresSAA3010 includes the remote order encoder, key scanning pulse generator, clock oscillating circuit, signal pre-amplifier circuit, test circuit and other additional circuit.2.pin functions and dataSAA3010 is in 28-pin dual in-line package, whose pin functions are listed as follows. Working parameters of SAA3010
