SAA1280--the integrated circuit of the single chip microcomputer

Published:2011/6/8 2:59:00 Author:qqtang | Keyword: integrated circuit, single chip microcomputer | From:SeekIC

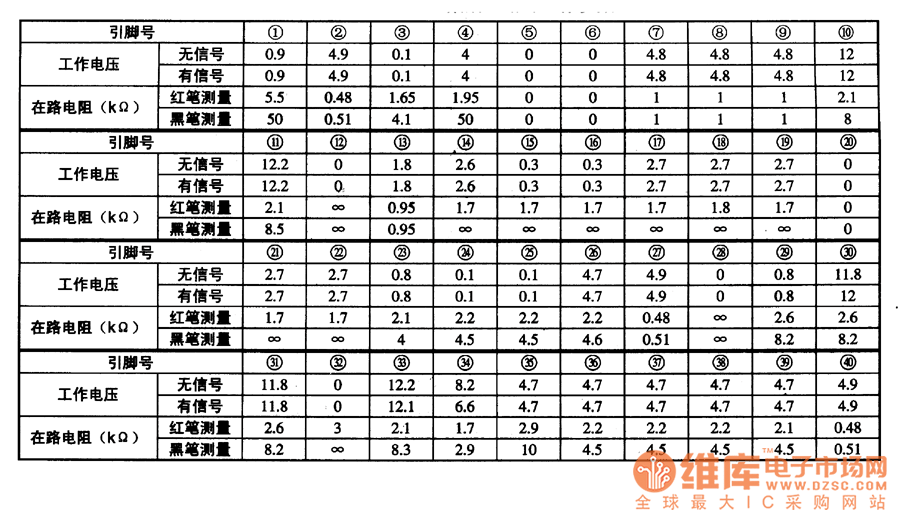

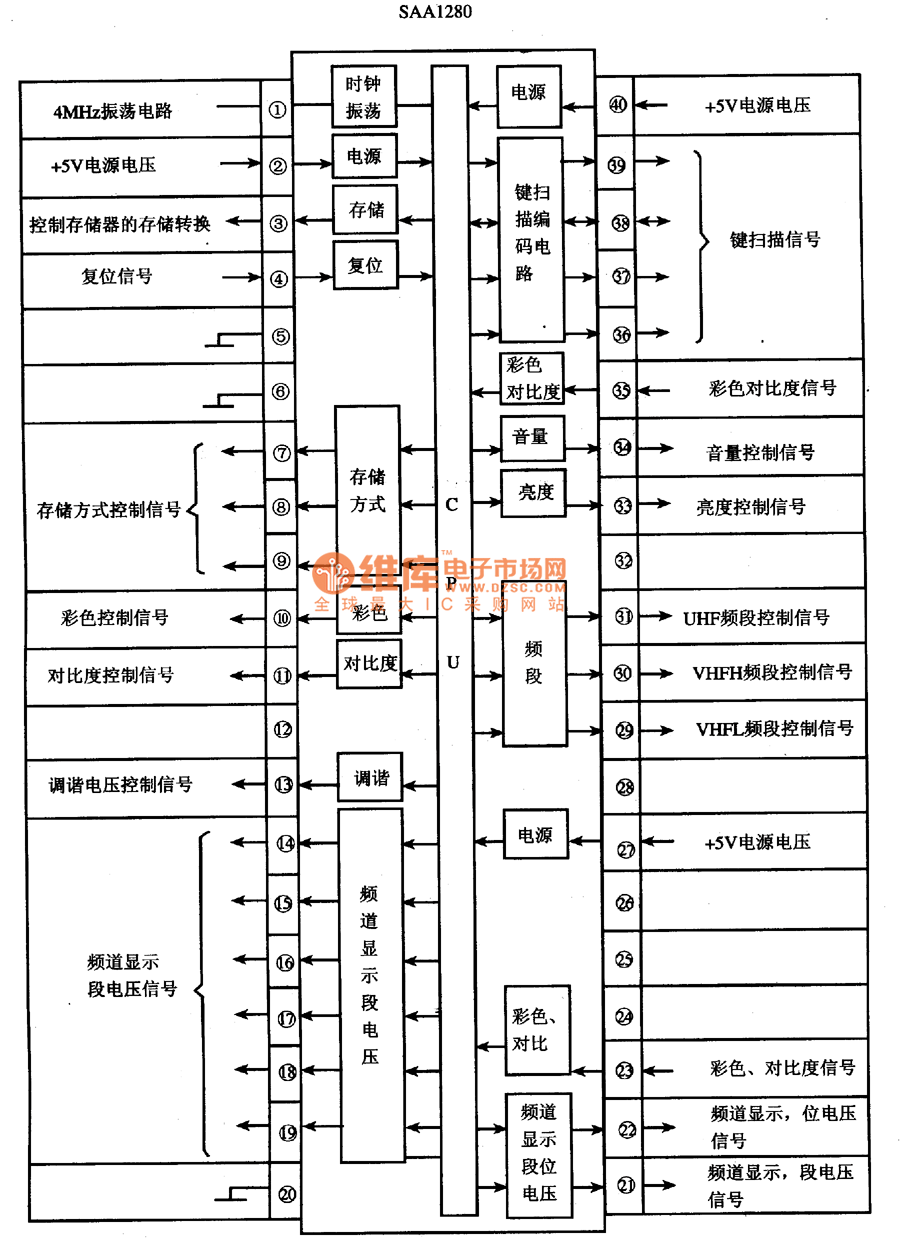

SAA1280 is an integrated circuit of the single chip microcomputer produced by Philips, which is widely used in Huari color TV sets and so on.1.function introductionSAA1280 includes CPU, clock oscillating circuit, storage control circuit, key scanning pulse generating circuit, decoding circuit of channel display voltage drive and other control and additional function circuit, etc.2.pin functions and dataSAA1280 is in 40-pin dual in-line package, whose working parameters are listed in the table.
