Ramp_and_hold

Published:2009/7/17 3:49:00 Author:Jessie | From:SeekIC

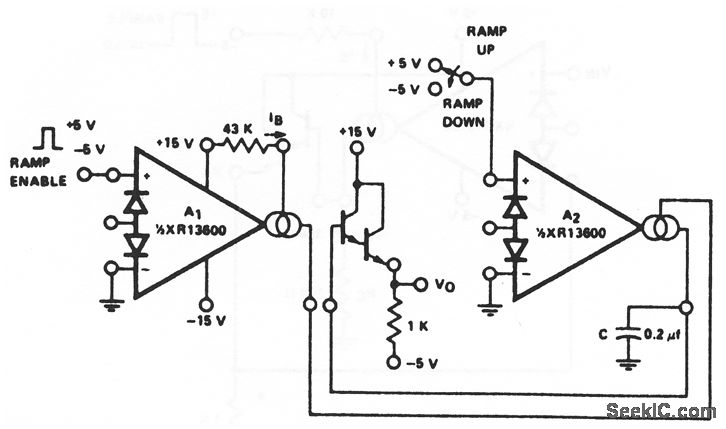

This circuit uses both sections of an XR-13600（Fig.11-1B）. The circuit Sources IB into capacitor C whenever the input to A1 is made high，giving a ramp rate of about 1V/ms for the values shown．EXAR corporation Databook 1990 p 5-257
