RS-232 serial interface circuit designed with two transistors

Published:2011/7/1 7:03:00 Author:Fiona | Keyword: serial interface, designed with two transistors | From:SeekIC

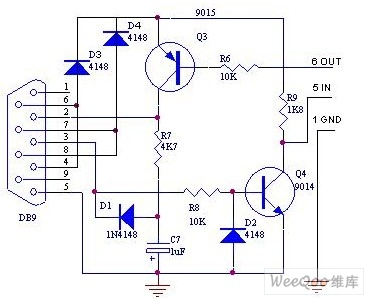

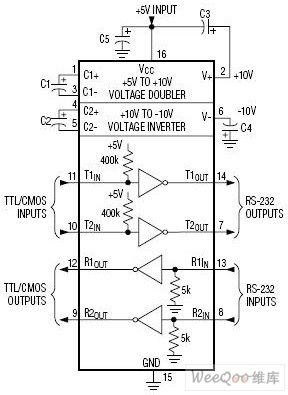

The above is the MAX232's internal circuit. The below that I make is the 6688 data line circuit which uses transistor, capacitor C7 produces negative pressure:
