RIAA_PHONO_PREAMP

Published:2009/7/6 5:56:00 Author:May | From:SeekIC

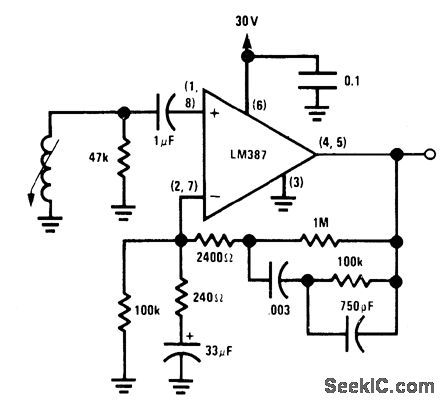

Design procedure is given for operation from 30-V supply, using magnetic cartridge having 0.5 mV/cm/s sensitivity. Will drive power amplifier having 5 VRMS input overload limit.-“Audio Handbook,”National Semiconductor, Santa Clara, GA, 1977, p 2-25-2-31.
