RF2162 900MHz linear amplifier pin circuit

Published:2011/5/3 2:49:00 Author:May | Keyword: 900MHz, linear amplifier | From:SeekIC

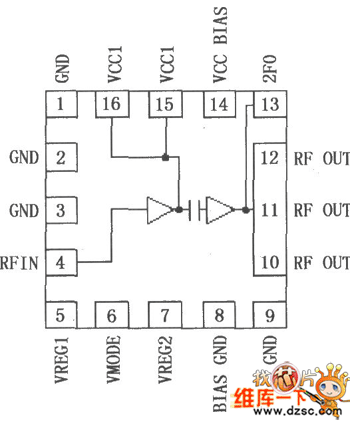

FR2612 is a high power, high efficiency linear amplifier IC which is applied to 3V handheld systems. It is treated by advanced gallium heterostructure bipolar transistor (HBT). It is designed for finnal linear RF amplification of double mode 3V CDMA/AMPS handheld digital type celluar system equipment, band spread system and other applictions with 800~960MHz working frequency. RF2162 has a analog bias control voltage to generate largest efficiency. The device itself contains 50Ω input and output. It is very easy to match best power, efficiency and linear characteristic. RF2162 adopts compact sixteen pins non-leaded package. Its pin array is shown in the diagram.
