RF2126 high power linear amplifier pin circuit diagram

Published:2011/10/26 22:00:00 Author:May | Keyword: high power linear amplifier | From:SeekIC

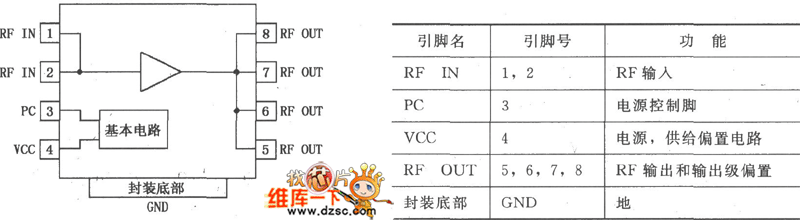

RF2126 is high-power, high-efficiency linear amplifier IC. It adopts advanced GaAs hetero-junction bipolar transistor (HBT) technology. It is designed for 2.5GHz ISM frequency range final linear RF amplifier, such as WLAN and POS terminal, it also can beused for digital PCS phone to send out final linear enlarging. Its working frequency is 1800~2500MHz.RF2126 has matching network, and RF2126 itself includes power supply wire and bypass capacitor. Output power’s typical value is 1W. RF2126 can beused for 2.5Hz ISM frequency range, digital communication system, PCS communications system, commercial and consumer system, portable battery power equipment and so on. RF2126’s pin array and functionare shown in the following diagram.
