READ_WRITE_AMPLIFIER

Published:2009/7/16 1:33:00 Author:Jessie | From:SeekIC

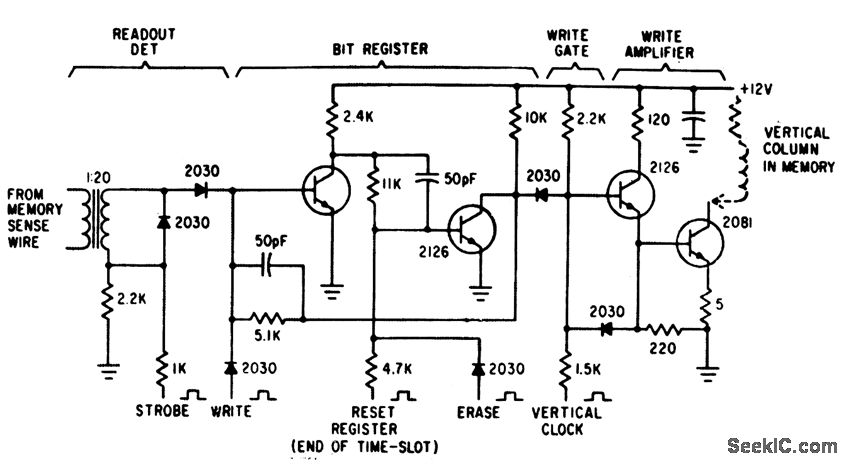

Each of 28 vertical circuits for coincident-flux memory consists of readout detector, bit register (flip-flop), write gate, and two-stage write amplifier-H. F. Priebe, Jr., Three-Hole Cores for Coincident.Flux Memory, Electronics, 33:31, p 94-97.
