Pulse_power_amplifier_using_an_MC1554

Published:2009/7/21 2:54:00 Author:Jessie | From:SeekIC

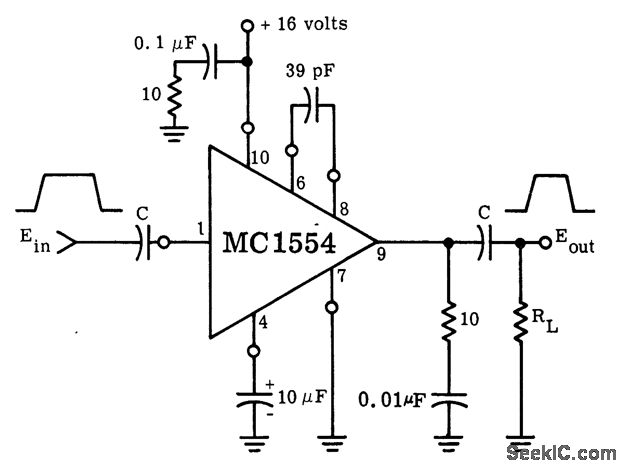

Pulse power amplifier using an MC1554. As shown voltage gain is 18. Peak power of 3 watts is possible (courtesy Motorola Semiconductor Products Inc.).
