Pulse amplifier circuit

Published:2011/4/25 20:32:00 Author:Nicole | Keyword: Pulse amplifier | From:SeekIC

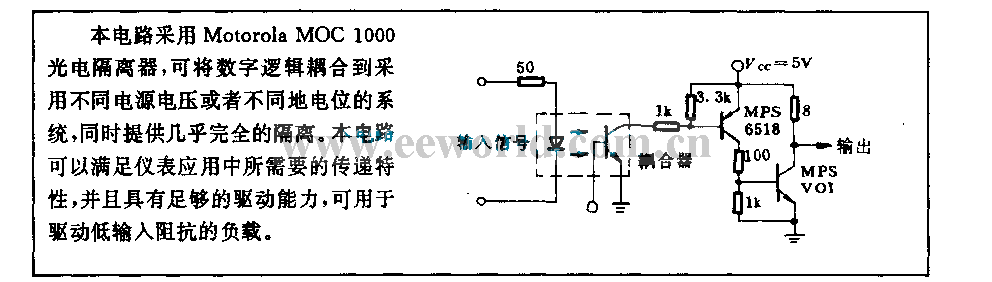

This circuit adopts Motorola MOC1000 photoelectric isolator, it can couple digital logic to the adopted different power supply or level system, they provide almost complete isolation. The circuit can satisfy the need of transfer characteristicin the instrument application, it has enough drive capability, it can be used to drive the low input resistance load.
