Precision_current_monitor

Published:2009/7/23 21:30:00 Author:Jessie | From:SeekIC

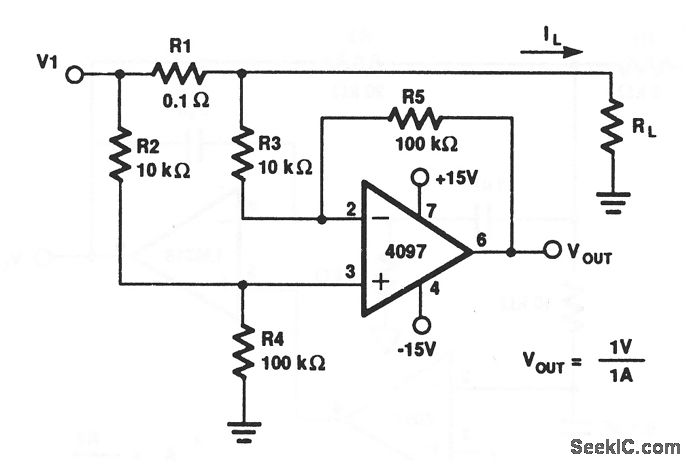

This circuit produces an output voltage that is proportional to the current that is applied to the load RL.
