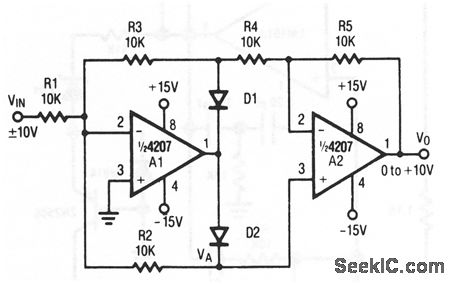

Precision_absolute_value_circuit

Published:2009/7/24 22:17:00 Author:Jessie | From:SeekIC

The values and types of D1 and D2 are not critical, but both diodes should be the same, and both must be able to withstand ±15 V (such as a 1N914).
