Power_op_amp_with_single_supply_operation

Published:2009/7/24 23:26:00 Author:Jessie | From:SeekIC

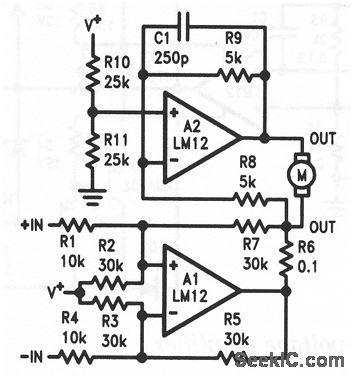

The output current of the LM12 (Fig. 10-46) bridged amplifier is proportional to differential-input voltage, thus eliminating the need for two supplies. If the output is a motor load (as shown), use output clamp diodes.
