Power_op_amp_cascade_amplifier

Published:2009/7/24 23:32:00 Author:Jessie | From:SeekIC

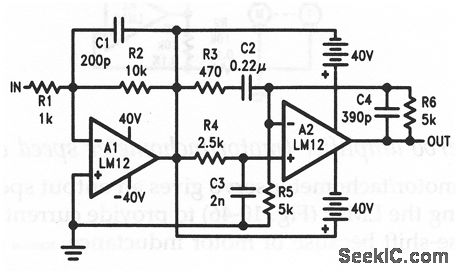

This amplifier cascades two LM12s (Fig. 10-46) to double the output swing. The output can be increased by any number of stages, but a separate floating supply is required for each. Notice that both input and output are single-ended.
