Power_op_amp_bridge_amplifier_with_differential_output

Published:2009/7/24 23:27:00 Author:Jessie | From:SeekIC

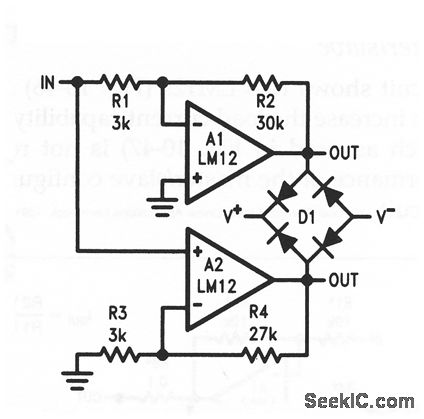

The differential output of the LM12 (Fig. 10-46) amplifier almost doubles the voltage swing delivered to the load. The diodes clamp the outputs to the supplies.
