Pioneer M22K amplifier circuit

Published:2011/5/16 9:50:00 Author:Christina | Keyword: Pioneer, amplifier circuit | From:SeekIC

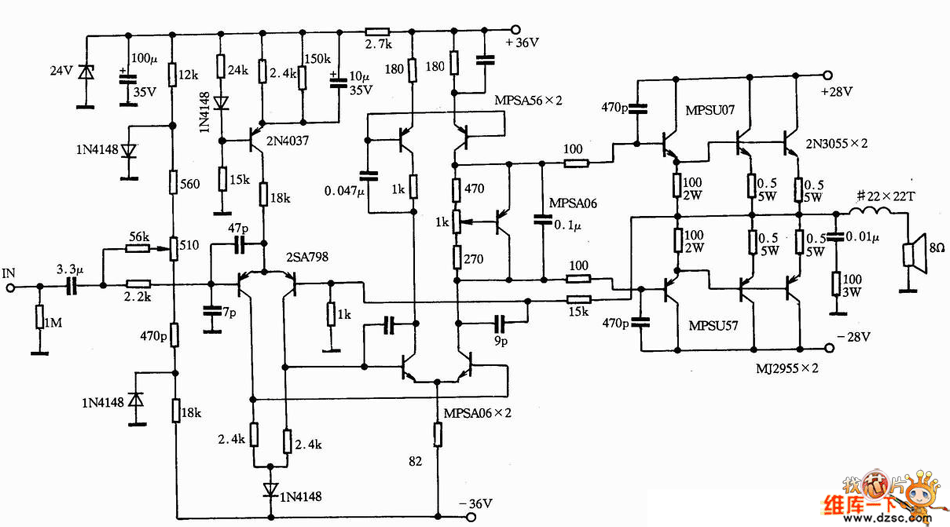

The Pioneer M22K amplifier circuit is as shown:
