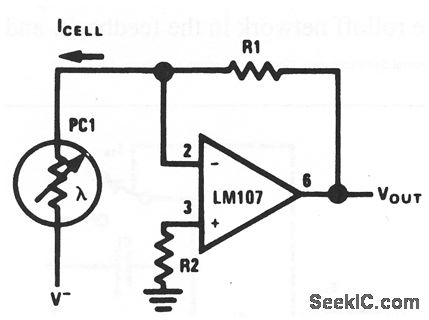

Photoconductive_cell_amplifier

Published:2009/7/23 21:56:00 Author:Jessie | From:SeekIC

R1 depends on cell sensitivity， and should be chosen for eithermaxlmum dynamic range， Or for a desired scale factor． R2 is used tominimize outputoffset． and can be omitted in many applications．
