Phase wave-detector circuit

Published:2011/5/10 22:32:00 Author:Christina | Keyword: Phase, wave-detector | From:SeekIC

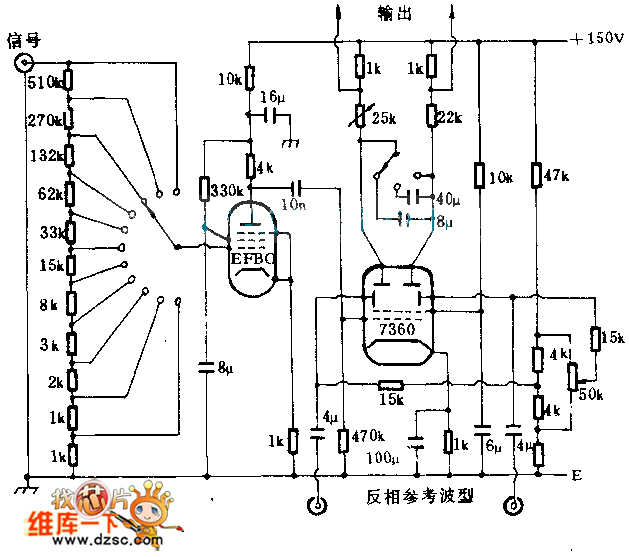

The IR system balance full-wave phase wave-detector is as shown, the RCA7360 is the beam deflection tube, this deflection tube has two deflectors to switch the electron beam from one electrode to another electrode. The conversion function of the deflector is controlled by the reference waveform which is synchronous with the into signal. If you connect a capacitor (8μF or 40μF) to the output port, and charge it with two half-cycle, you can get the doubling of the input value's standard.
