PHASE_LOCKED_LOOP

Published:2009/6/22 23:15:00 Author:Jessie | From:SeekIC

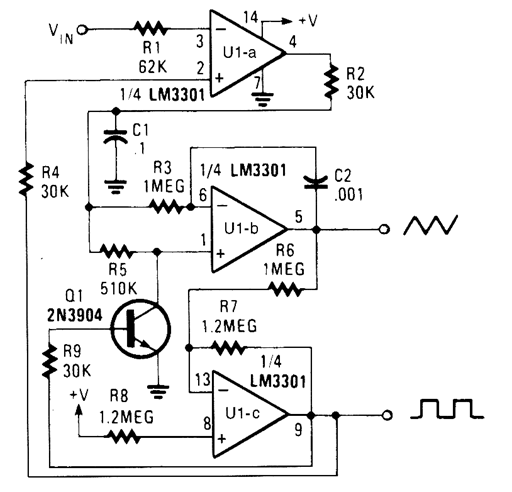

The PLL will lock onto an input signal. Both triangle- and square-wave outputs are available.A quad op amp can be used in this circuit, which should be useful in the audio and LF radio region.
