PULSE_AMPLIFIER

Published:2009/7/6 7:15:00 Author:May | From:SeekIC

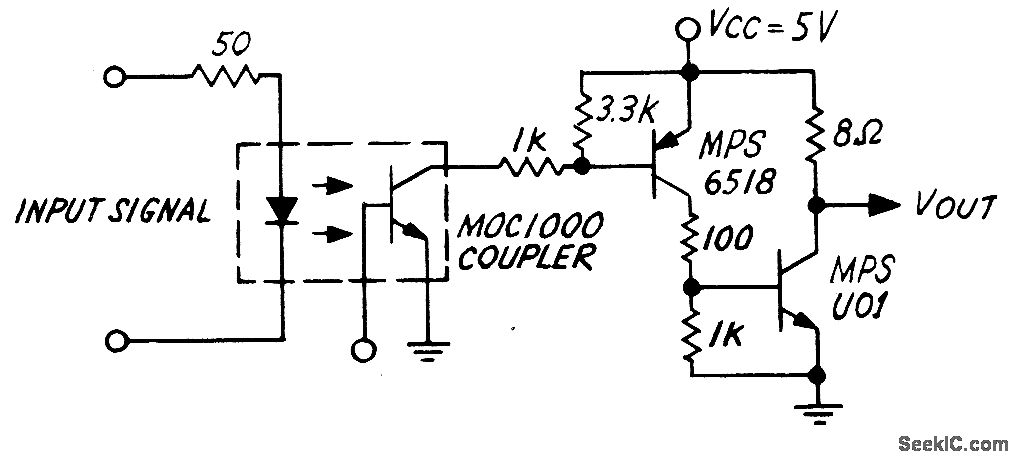

Motorola MOC1000 optoisolator permits coupling digital logic to system having different supply voltages or unequal grounds while providing essentially complete isolation. Circuit provides transfer characteristics needed in instrumentation applications and has sufficient drive for handling low input impedances.- Industrial Control Engineering Bulletin, Motorola, Phoenix, AZ, 1973, EB-4.
