PULSED_DISTRIBUTED_AMPLIFIER

Published:2009/7/17 5:21:00 Author:Jessie | From:SeekIC

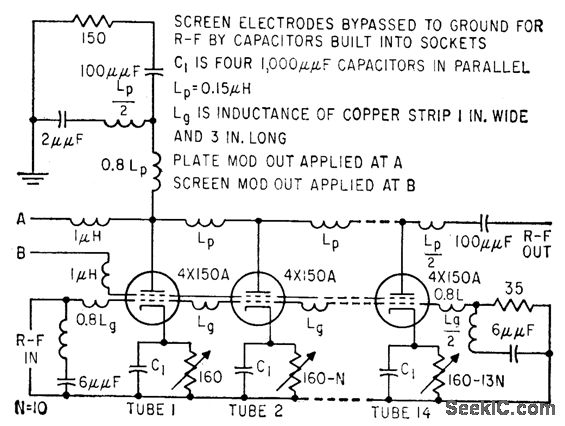

Gives 20% bandwidth centered on 200 Mc. Used as output stage of moderate-power radar, final drive of high-power drive, and for high-level pulse amplification.-S. K. Meads, How to Design Pulsed Distributed Amplifiers, Electronics, 32:12, p 56-58.
