PROTECTIVE_DIODES_FOR_SCHMITT_TRIGGER

Published:2009/7/23 21:25:00 Author:Jessie | From:SeekIC

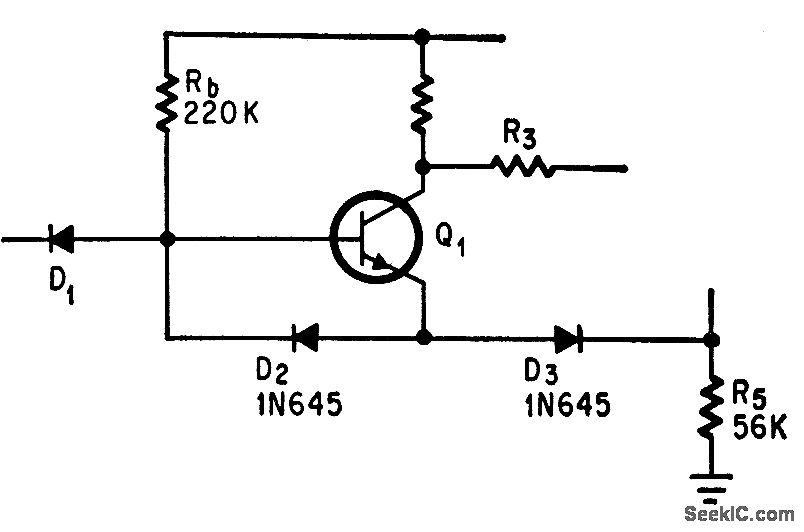

Addition of diodes D2 and D3 to modified Schmitt trigger having isolating diode D1 prevents reverse breakdown of emittor-base junction of Q1.-J. Gaon, Diode and Resistor Increase Input Resistance of Schmitt, Electronics, 39:12, p 110-111.
