PROFESSIONAL_AUDIO_NAB_TAPE_PLAYBACK_PREAMPLIFIER

Published:2009/7/6 1:31:00 Author:May | From:SeekIC

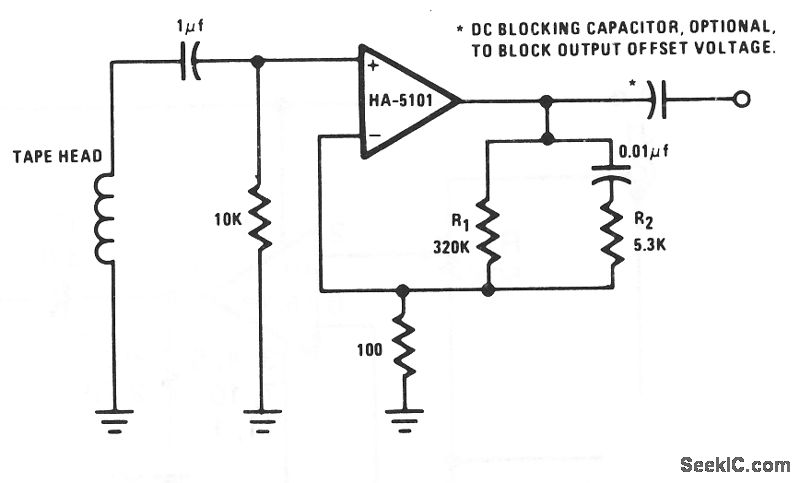

The preamplifier is configured to provide low-frequency boost to 50 Hz, flat response to 3 kHz, and high-frequency attenuation above 3 kHz. Compensation for variations in tape and tape head performance can be achieved by trimming R1 and R2.
