PREFERRED_POWER_AMPLIFIER

Published:2009/7/14 22:23:00 Author:Jessie | From:SeekIC

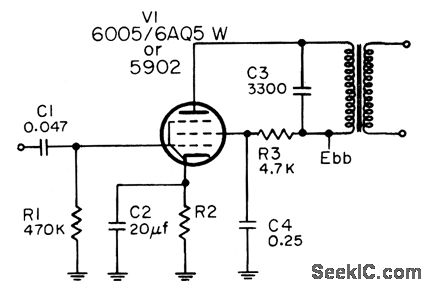

For 6AQ5W, with plate supply of 250 v, output is 115 v to transformer at 2.21 w for 6 v rms input. For 5902, with plate supply of 150 v, output to transformer is 75 v at 0.8 w for 5 v rms input.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. I, Electron Tube Circuits, 1963, PC 61, p 61-2.
