POWER_OPAMP_FOR_CONTROL

Published:2009/7/13 22:29:00 Author:May | From:SeekIC

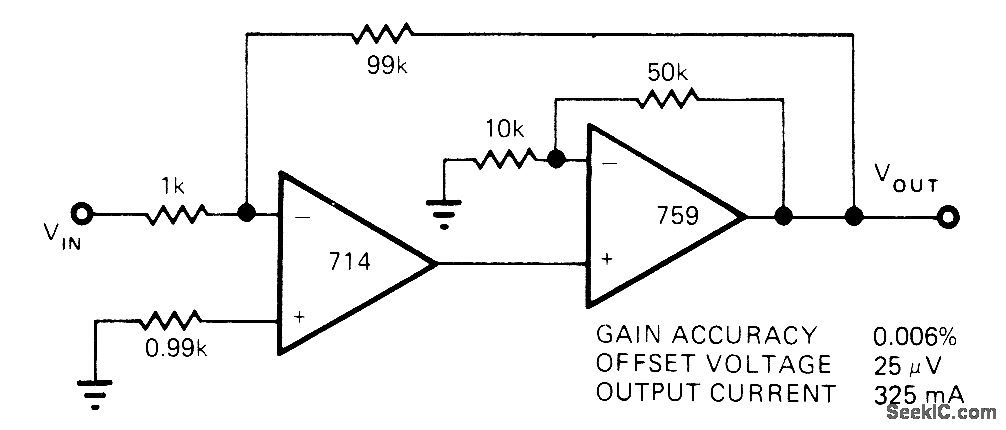

Precision 714 opamp drives 759 power opamp to give ultraprecision power amplifier system. High current capability (up to 500-mA peak output current) makes circuit suitable for such control applications as driving motors, relays, solenoids, or transmission lines. Article tells how to calculate heatsink requirements for opamp.-R. J. Apfel, Power Op Amps-Their Innovative Circuits and Packaging Provide Designers with More Options, EDN Magazine, Sept. 5, 1977, p 141-144.
