POS CDMA/TDMA PA driver amplifier FR2324 pin data

Published:2011/8/4 2:46:00 Author:May | Keyword: driver amplifier | From:SeekIC

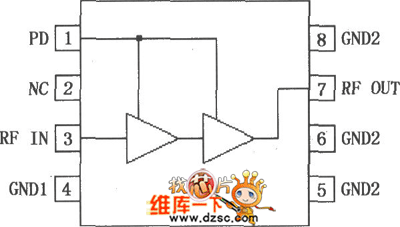

RF2324 is CDMA/TDMAPA driver amplifier with very large dynamic range. It is designedfor 1800MHz emission digital PCS signal.The device is used as aPA driver amplifier with outstanding properties, it can solve the low emission noise power problem which is cared by digital user. RF2324 has the property of power down control ,and itcan total close the device. RF2324 adopts standard small 8 pins MSOP plastic package. Its pin array is shown in the diagram. The pin function is shown in the follwing diagram
